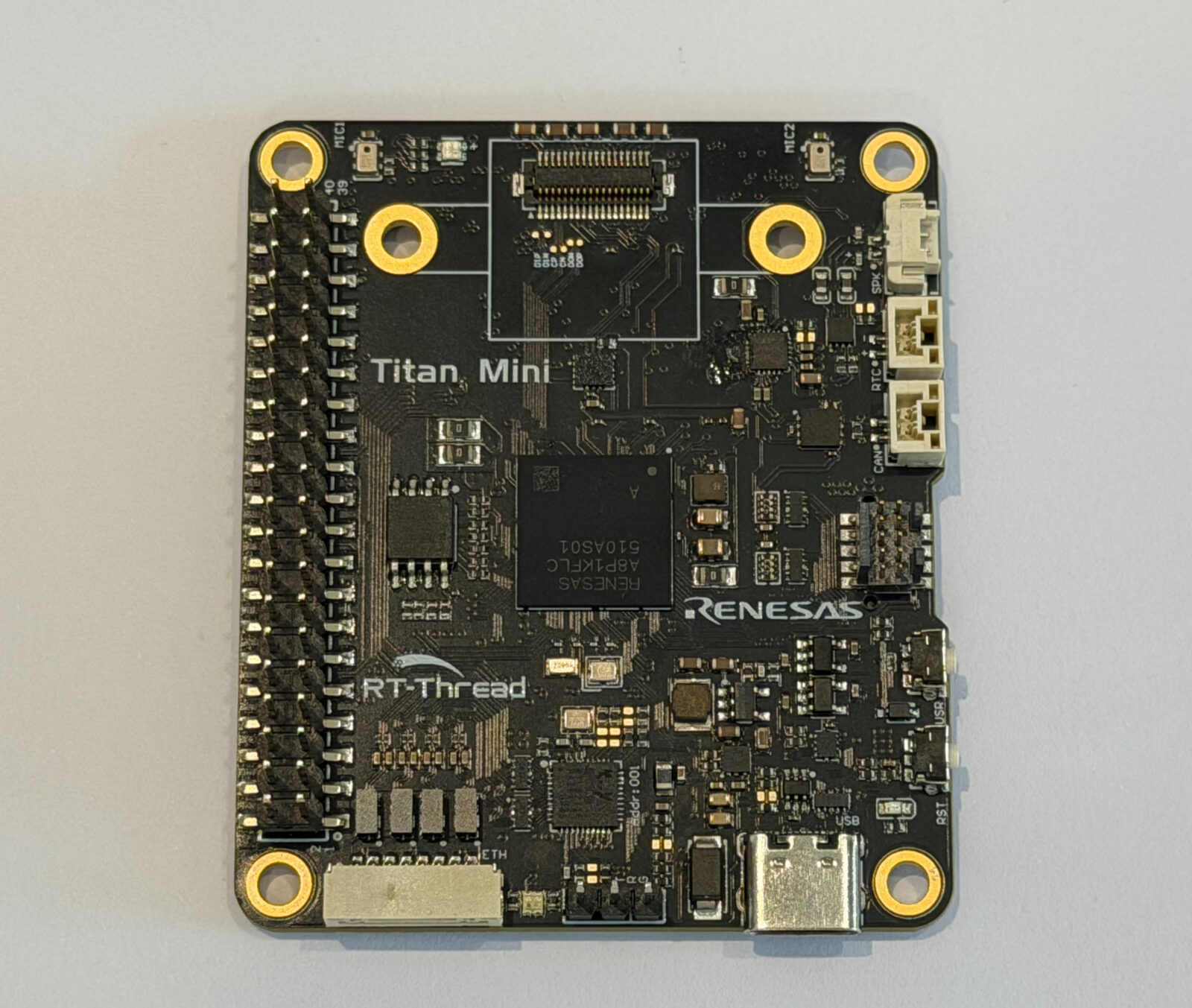

The Titan Mini is a smaller and considerably cheaper model of the RA8P1 Titan board launched in 2025 for AIoT purposes and RT-Thread RTOS improvement.
It nonetheless incorporates a Renesas R7KA8P1 Cortex-M85/M33 microcontroller with an Arm Ethos-U55 NPU, however comes with lower-capacity reminiscence and storage chips (32MB SDRAM and 8MB QSPI flash), drops the RJ45 Ethernet ports with a single FPC Ethernet connector, amongst different cost-saving measures. The one profit I see apart from the smaller dimension and barely lower cost is the presence of a microphone and a speaker connector for audio purposes.
Titan Mini specs:
- SoC – Renesas RA8P1 (R7KA8P1)
- MCU cores
- Arm Cortex-M85 clocked at 1 GHz with Helium MVE (M-Profile Vector Extension) with 32KB I/D caches; 7300+ CoreMarks
- Arm Cortex-M33 clocked at 250 MHz with 32KB I/D caches
- GPU – D/AVE 2D drawing engine
- NPU – Arm Ethos-U55 NPU delivering 256 GOPS at 500 MHz
- Reminiscence – 2 MB SRAM, 1MB MRAM
- Manufacturing Course of – TSMC 22nm Extremely-Low Leakage (ULL) expertise
- MCU cores
- Reminiscence – 32MB 64-bit SDRAM
- Storage
- 8MB QSPI flash
- MicroSD card slot
- Show I/F – 22-pin RGB565 FPC connector for LCD
- Digicam I/F – 22-pin digicam connector
- Audio
- Speaker connector
- Constructed-in microphone
- Networking – Ethernet FPC connector
- USB – USB 2.0 FS/HS Sort-C port
- Serial
- CAN Bus interface
- 3-pin UART header
- RTC battery connector
- Enlargement – 40-pin GPIO header for Raspberry Pi HAT
- Debugging – 10-pin JTAG connector
- Misc
- Consumer and Reset buttons
- 1x LED
- Energy Provide – 5V/1A by way of USB Sort-C port
- Dimensions – 65 x 55 mm
You’ll want to make use of an non-compulsory FPC to RJ45 cable if you wish to use Ethernet, and a 5MP OV5640 digicam module can also be provided as an choice. You possibly can carry out debugging by way of an non-compulsory “HSLink Debug Package” linked to the JTAG header.
RT-Thread offers an SDK/BSP for the board on GitHub with libraries and numerous code samples, together with a blinking LED, a show and digicam demo, an Ethernet pattern, an NPU-accelerated AI face detection demo, and a WAV audio participant. The docs listing contains some documentation, together with some misnamed “Titan_Mini_datasheet.pdf” and “Titan_Mini_user_manual.pdf” information which are generic RA8P1 datasheet and consumer’s handbook as a substitute. No less than the PDF schematics look actual…
RT-Thread sells the Titan Mini board for $44.23 on AliExpress, however that doesn’t embrace the Ethernet cable, including $7.66, during which case the overall value could be $51.89, or greater than the $50 requested when the Titan board was launched in 2025, though it’s now $62.41. The costs are earlier than delivery and eventual taxes. As a aspect notice, the corporate advised us they don’t ship to the European Union resulting from “regulatory necessities”. That’s most likely as a result of the board lacks some certifications, and I requested what these have been, however the firm couldn’t reply in time for this text.
