A foul web connection is the quickest method to do something you do on-line. Whether or not it is gaming or workplace work, in case your web is dropping each couple of minutes, you will not be capable to get something completed. And greater than the buffering, it is the uncertainty. Your video name drops, and also you’re left questioning whether or not your router, ISP, or that Ethernet cable you’ve got been which means to interchange is at fault.
There are a couple of router defaults it’s best to repair earlier than blaming your ISP, however they do not forestall you from having to guess whether or not your newest outage is the ISP’s fault or self-induced. I used to reply this the old school approach: by strolling over to the router — so I made a decision to repair it with a $10 construct that exhibits every thing at my desk.
5 helpful issues a $5 ESP32 can do in your residence community
This tiny chip is doing an excessive amount of.
A community monitor that prices lower than a takeaway
The straightforward {hardware} behind a surprisingly helpful gadget
You solely really want a Wi-Fi-capable microcontroller and an LED or buzzer for those who want an audio cue. The common ESP32 is greater than succesful for this, so there is not any threat of selecting the improper ESP32 board. You may even do that on an ESP32 C3 Supermini if you’d like a good cheaper different. I ended up selecting my ESP32-S3, the beefier sibling of the basic ESP32, which comes with a built-in RGB LED, as I did not desire a buzzer going out in the midst of the evening if my web goes down.

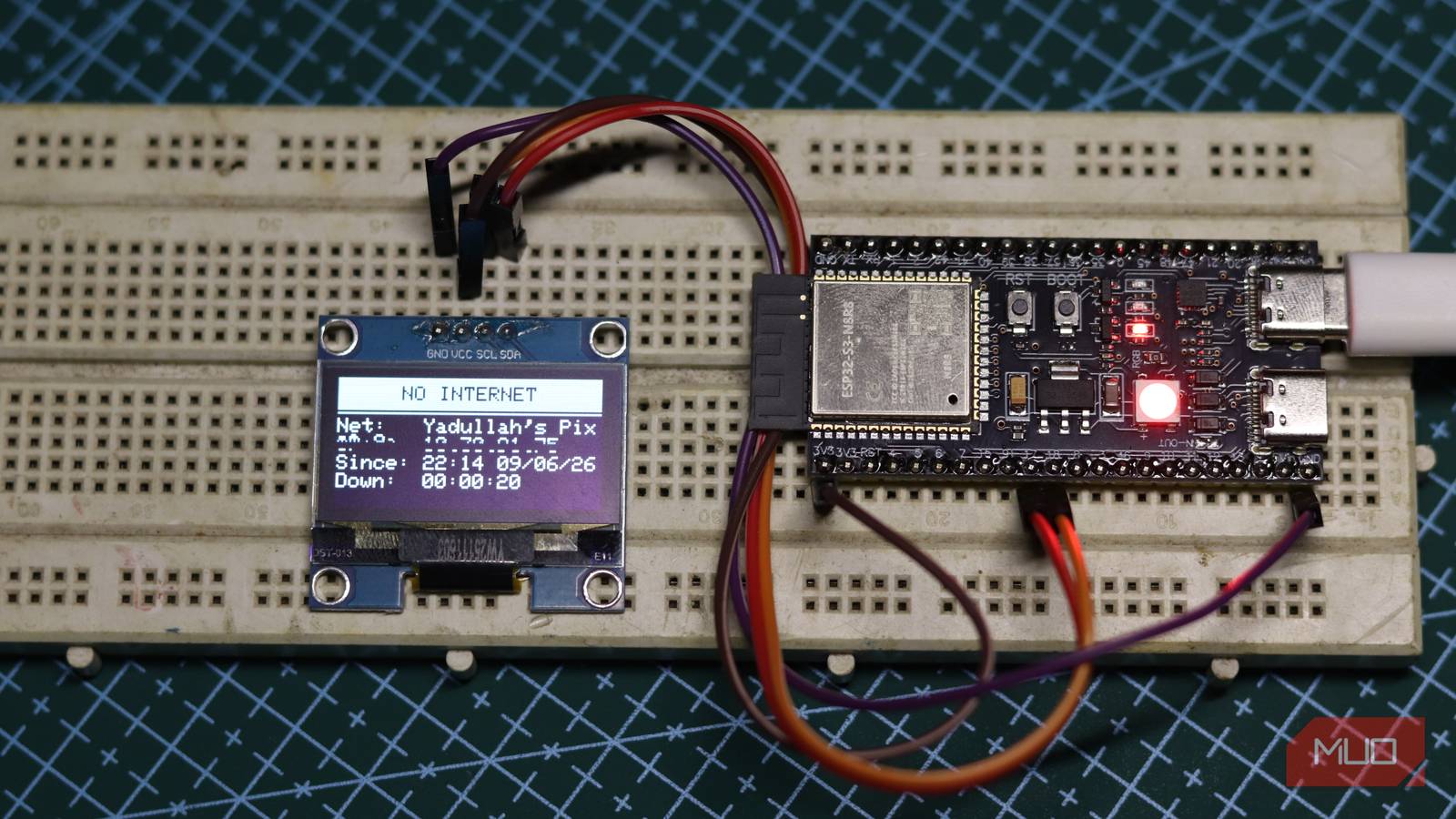

The RGB LED helps as a result of I can use the identical (and somewhat brilliant) LED to point totally different states. A flashing blue gentle means the board is connecting to my Wi-Fi, a strong inexperienced gentle means the web is working, a strong crimson means it is offline, and a blinking crimson means the Wi-Fi community itself is not obtainable. I additionally threw in a 1.3-inch SH1106 OLED show to indicate data just like the SSID, native IP tackle, Wi-Fi sign energy, and a reside uptime or outage length counter relying on the state of affairs.
Because of the RGB LED on my ESP32-S3 board, there are solely 4 connections I must make. The SH1106 connects over I2C with SDA on GPIO 18 and SCL on GPIO 18, with energy going to the ESP32’s 3.3v pin and floor to the board’s floor connection.
Web monitoring is simpler than it sounds
A couple of pings are sufficient to inform when one thing breaks
The software program aspect of the construct is surprisingly easy. All you are doing is pinging an IP tackle that is unlikely to go offline, like Google’s 8.8.8.8 or Cloudflare’s 1.1.1.1. The board pings the IP tackle, listens for a response, and confirms that web connectivity exists. The second three consecutive pings fail, it declares an outage, turns the onboard RGB LED crimson, and updates the show.
The connectivity examine length and ping command failure threshold might be modified to go well with totally different networks. For instance, in case your web connection is generally dependable and solely fails often, you’ll be able to drop the connectivity examine to detect outages sooner. Conversely, for those who’re on a spotty connection, you may wish to elevate the ping command failure threshold to make sure you do not get false positives.
As soon as the board connects and syncs time over TNP, the OLED stays helpful somewhat than ornamental. The web display exhibits a reside uptime counter, the present native IP tackle, the present sign energy (RSSI) in dBm, and the time. When an outage hits, the display switches to an alert view that exhibits the precise time the outage was detected and the time elapsed since. There’s additionally an alert banner flashing on and off each half a second, so mixed with the LED shade, it is actually exhausting to overlook an outage even when the machine is not in your direct line of sight.
The construct comes collectively shortly
From parts to a working monitor in a day

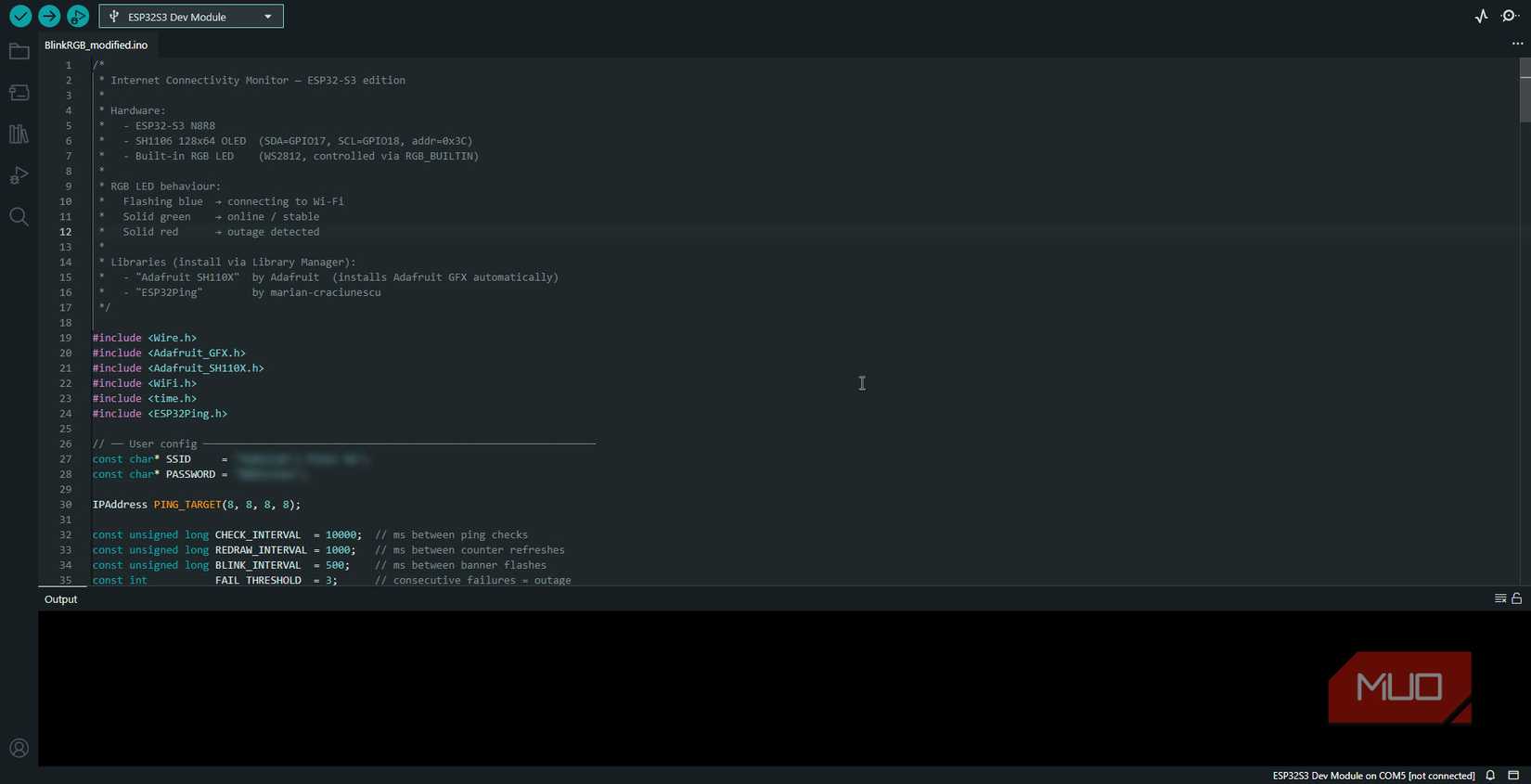

As soon as you’ve got obtained your connections in place, all it is advisable to do is hook up your board to your pc, hearth up the Arduino IDE, and add your sketch as you’ll to a standard ESP32 board. Be sure to’ve chosen the best ESP32 board and port in this system earlier than continuing.
I additionally used two libraries from the Arduino library supervisor: Adafruit SH110X and ESP32Ping by marian-craciunescu. Because the machine is not going to go away my community, I hardcoded my 2.4 GHz Wi-Fi community’s credentials within the sketch itself. The ESP32-S3 can’t hook up with 5GHz networks, however for web connectivity functions, the connection medium to the router is irrelevant.
On first boot, the OLED shows a connection display with the community identify, with the RGB LED flashing blue. As soon as the board will get an IP and syncs the clock, it switches to monitoring mode. The entire boot sequence takes just a few seconds on a typical residence community.
- OS
-
Home windows, Linux, macOS, Net
- Developer
-
Arduino
- Value mannequin
-
Free
Arduino IDE is a beginner-friendly improvement atmosphere used to jot down, compile, and add code to Arduino boards, ESP32s, and different microcontrollers.
Your router doesn’t inform the entire story
The distinction between Wi-Fi, web, and ISP issues
Your router’s standing lights solely present you whether or not the router is powered and whether or not it thinks it has a WAN connection. That is not the identical as precise web entry. Your router can present every thing so as, whereas your ISP’s DNS server may be having a meltdown, your PPPoE session has been dropped and never re-established, and tons of different points that may hamper web connectivity.
My Wi-Fi Drops Each Hour: Here is What Lastly Mounted It
Random Wi-Fi outages completely suck—so take some steps to resolve the issue.
The monitor bypasses all of that and checks the community from the attitude of a shopper, which means it will get the identical therapy as your telephone or pc. When it says the web is down, it is truly down, and none of your units will be capable to get on-line.
Because the machine pings constantly, you can too have it document logs as to when the web went down and when it got here again up. Timing your outages like this can show you how to pin down patterns and provides clearer reviews to your ISP.
